What is box?

Box is a cloud-based service that allows users to securely store, access, share, and collaborate on files across devices.

Box also offers an open platform with APIs and SDKs, known as the Box Platform, that developers can use for a variety of purposes.

Our main purpose is to upload a file in Box using boxr gem.

How to integrate box?

First of all, we need to create one account and an application on Box platform.

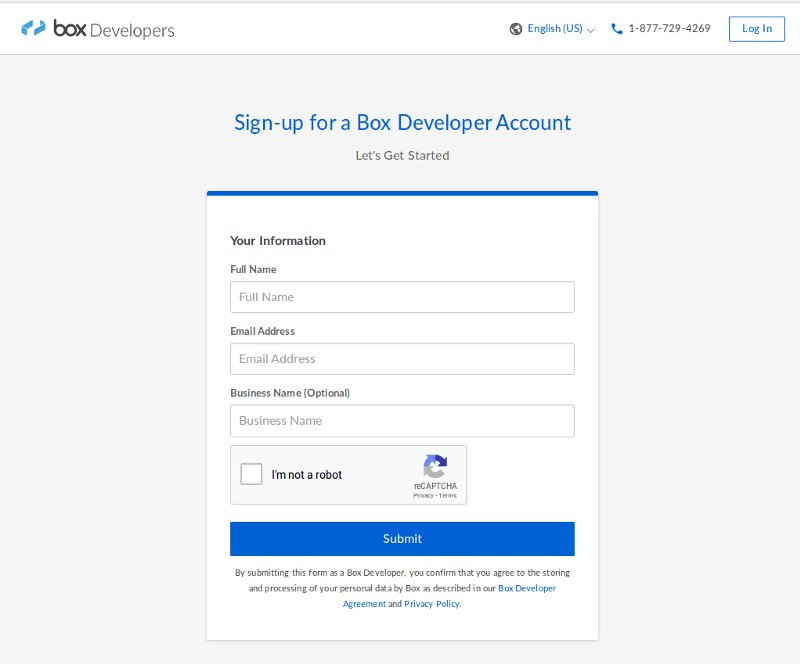

Sign up for a Box Developer Account.

Box Developer

Create a new application by clicking My Apps from left side panel in developers console.

Create a new application by clicking My App using Box Developer dashboard

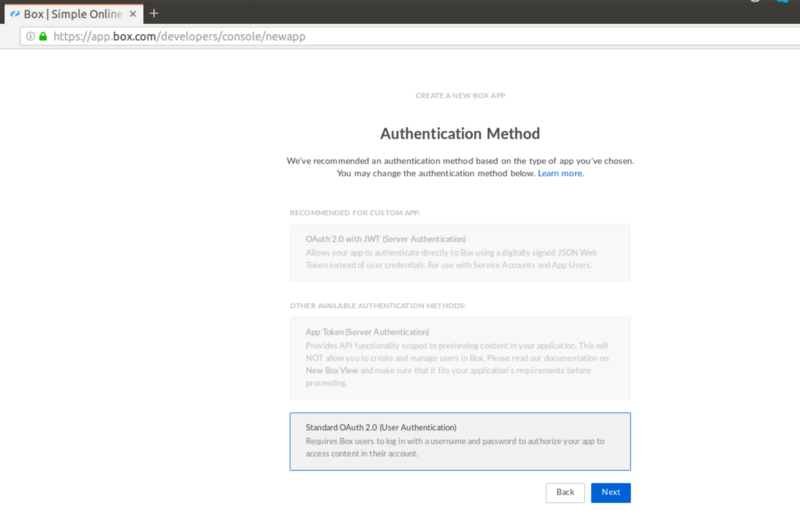

Select Standard OAuth 2.0 (User Authentication) for the new application.

Box Developer - User Authentication

After creating the application in box account, it will redirect you to application’s configuration page having Developer Token, Client ID and Client Secret. For one time authentication of our application, we need to set Redirect URI. This is the URL of our Rails Application (Must be secure). Set URI like,


Now, install boxr gem in our rails application and create one table to store access token and refresh token of a box for future use as box’s developer token (access token) expires in an hour.

In Rails console, run the following commands.

require 'boxr'
require 'dotenv'
oauth_url = Boxr::oauth_url(URI.encode_www_form_component('1233'))

Now redirect to oauth_url (pass client Id at the end of url if not present). And click on Grant Access button, it will redirect to your token_catcher method.

Below is the code snippet of token_catcher method.

Now, If you want Boxr to automatically refresh the tokens once the access token becomes invalid you can supply a refresh token, along with your client_id and client_secret, and a block that will get invoked when the refresh occurs.

To upload a file, first, we create one folder in box to store it, for example, images folder in our box application.

box application

The above code will upload a file to the specified folder and will provide the public link for the same. You can control access by specifying different options. I will cover that in my next blog.

That’s it! Have a happy coding.
